Product Description：
Name：IEC60598 Draught-Proof Enclosure for Luminaries and Lamp Temperature Rise
Type：BND-FFZ
Product Overview
The Draught-Proof Enclosure is meticulously designed and developed by our company in accordance with the stringent requirements of IEC60598-1/GB7000.1 Appendix D. This enclosure is essential for conducting temperature rise tests under both normal and abnormal operating conditions of lamps. It provides a standardized environment crucial for lamp and luminaire product testing organizations as well as factory quality control departments.
Product Description
Our Draught-Proof Enclosure features a rectangular shape with a double perforated plate enclosure on the top and four sides, complemented by a solid wood composite floor at the bottom. This design facilitates the placement of sample holders and samples efficiently.
Key Features:
1.Double-Layer Perforated Plate: The spacing between the two layers is approximately 150mm, with holes regularly distributed across the aperture plate. The diameter of these holes ranges from 1-2mm, covering about 40% of each layer's total area.
2. Ceiling Mounting Plate: A ceiling mounting plate or removable hanger with hooks is placed at the top for testing luminaires fixed to ceilings.
3. Wire Testing Convenience: Holes are provided at the bottom sides of the windshield to accommodate wire testing.
Specification Parameters
| items | Specification Parameters |
|---|---|
| Shell Structure | Double-shell rectangular metal structure made from 1mm cold plate (non-glossy black spray) |
| Outer Size | 500x500x500 / 1000x1000x1000 / 1800x1800x2000mm or customized (LxWxH) |
| Inner Layer Size | 800x800x650 / 1350x1350x1150 / 2100x2100x2150mm or customized (LxWxH) |
| Level Spacing | 150mm |
| Door Structure | Single double-layer (inner and outer double door structure) |
| Mesh Panel Aperture | ф1mm -ф2mm |
| Ventilation Rate of Mesh Plate | Approximately 40% |
| Frame Type | Stamping and molding with mesh plate material, ensuring ventilation rate is not affected |
| Surface Spraying | Black non-glossy paint |
| Base Plate Plywood | Surface sprayed black, with sandwich solid wood flooring installation |

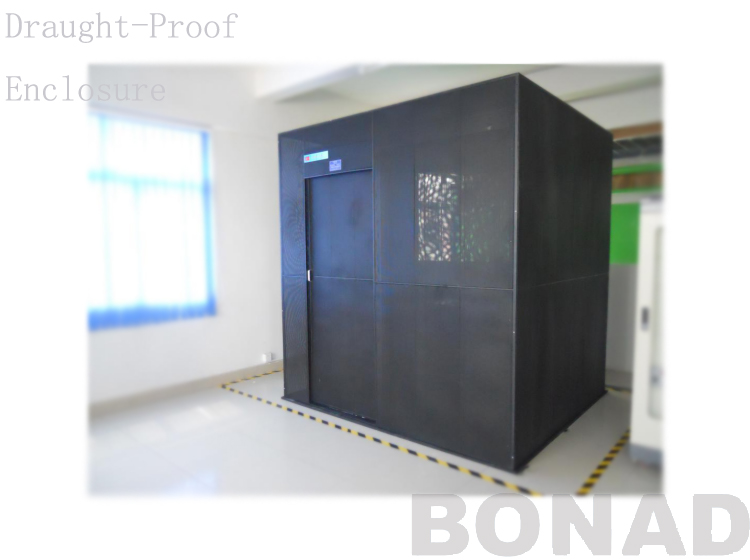

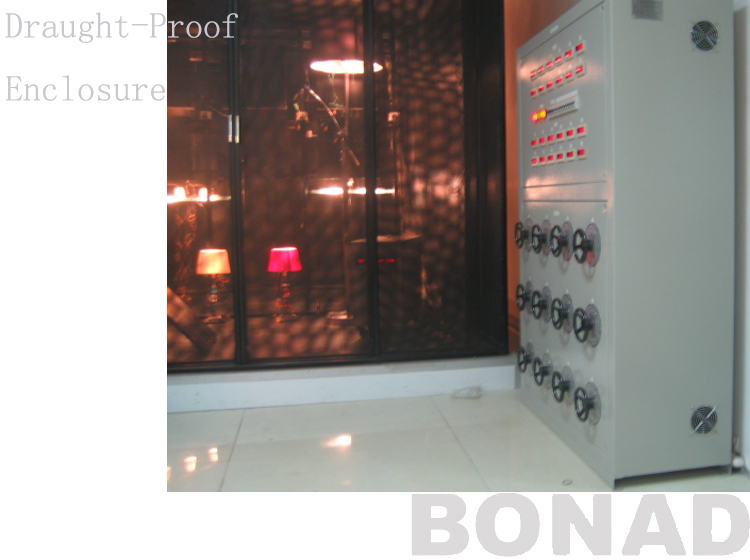

Product Picture Details
