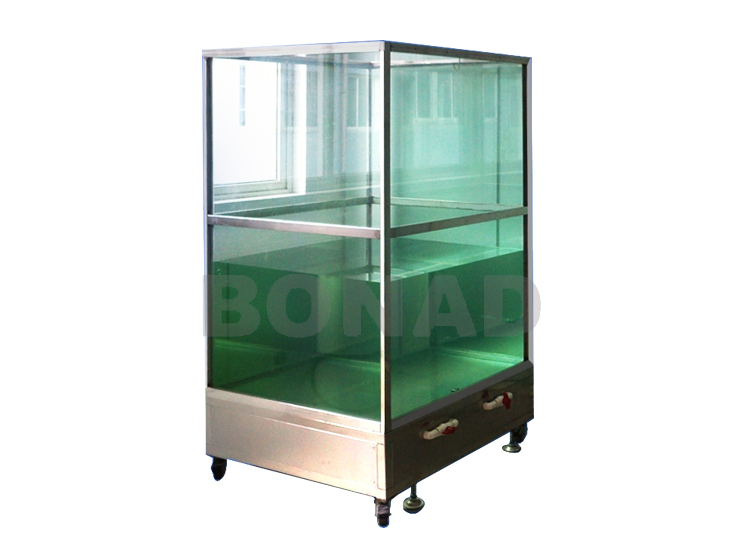

IPX7 Water immersion Test equipment BND-IPX7A

1

inside the size (mm)

600*600*1200 mm

800*800*1200 mm

1000*1000*1200 mm

2

External dimensions (mm)

660*660*1400 mm

860*860*1400 mm

1060*1060*1400 mm

3

Tempered glass thickness (mm)

12

12

15

4

test the maximum depth (m)

1.2m

5

water level adjustment

manually adjust

6

Water level display

Observation by stainless steel ruler (number of display 1mm)

7

frame material

stainless steel side pass

8

standards

IEC60529:1989+A1:1999、GB4208、GB7000.（IPX7)
