Product Description：
Name：BS1363 Figure 13 Test apparatus and circuit for use with contact and non-contact gauges
Type：BND-BS13

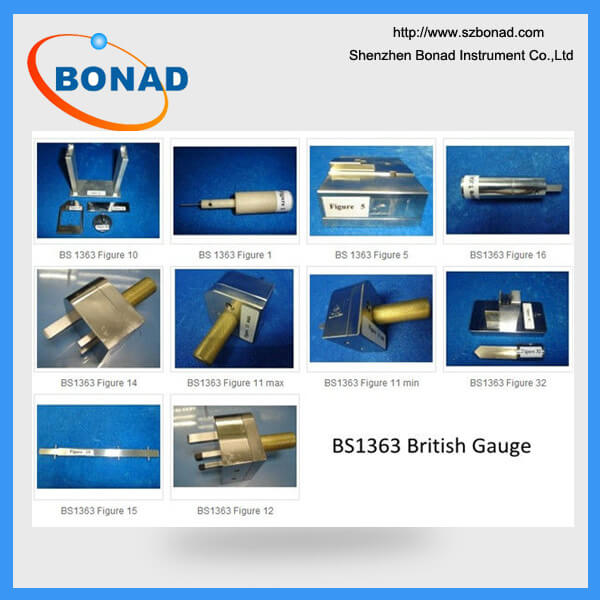

| No. | Product name | standard | Quantity |
| 1 |
Figure 1 — Test pin |
BS1363-2-Fig1 | 1 |
| 2 |
2a)Apparatus for mechanical strength test on resilient covers |
BS1363-2-Fig2 | 2 |
| 3 |
Figure 11 — Go gauge for socket-outlet |
BS1363-2-Fig11max/min | 2 |
| 4 |
Figure 12 — Contact test gauge |
BS1363-2-Fig12 | 1 |
| 5 |
Figure 13 — Test apparatus and circuit for use with contact and non-contact gauges |
BS1363-2-Fig13 |
1 |
| 6 |
Figure 14 — Non-contact test gauge |
BS1363-2-Fig14 | 1 |
| 7 |
Figure 15 — Turning moment gauge |
BS1363-2-Fig15 | 1 |
| 8 |
Figure 16 — Withdrawal pull gauges for effectiveness of contact |
BS1363-2-Fig16a/b | 2 |
| 9 |
Figure 18 — Apparatus for flexing test |
BS1363-2-Fig18 | 1 |
| 10 |
Figure 19 — Solid link for test on fuse clips |
BS1363-2-Fig19 | 1 |
| 11 |
Figure 20 — Tumbling barre |
BS1363-2-Fig20 | 1 |
| 12 |
Figure 21 — Pendulum impact test |
BS1363-2-Fig21 | 1 |
| 13 |
Figure 22 — Arrangements for mechanical strength test for portable socket-outlets |
BS1363-2-Fig22 | 1 |
| 14 |
Figure 23 — Apparatus for pressure test |
BS1363-2-Fig23 | 1 |
| 15 |
Figure 24 — Apparatus for ball pressure test |
BS1363-2-Fig24 | 1 |
| 16 |
Figure 28 — Calibrated link |
BS1363-2-Fig28 | 1 |
| 17 |
Figure 29 — Calibration jig for calibrated link |
BS1363-2-Fig29 | 1 |
| 18 |
Figure 30 — Test plug for temperature rise |
BS1363-2-Fig30 | 1 |
