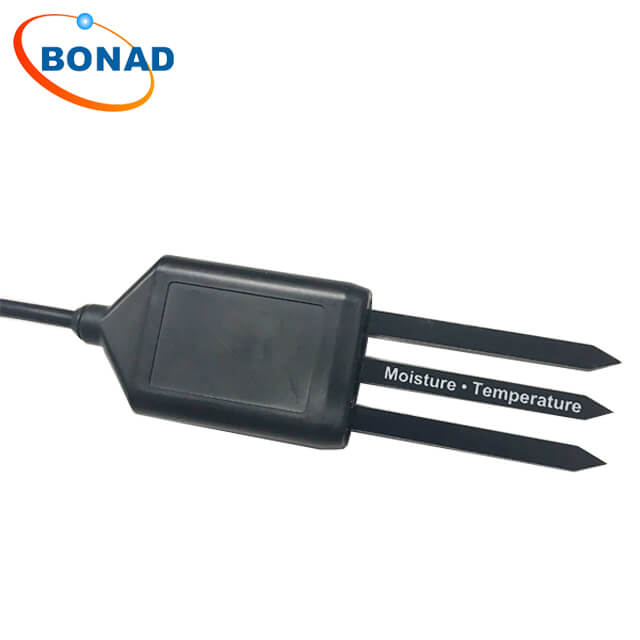

MT10 SDI-12 Output Soil Temperature And Moisture Sensor

We designed the MT-10 to measure the water content, electrical conductivity, and temperature of soil. The MT-10 uses an oscillator running at 70 MHz to measure the dielectric permittivity of soil to determine the water content. A thermistor in thermal contact with the sensor prongs provides the soil temperature. The Polyurethane coating on the MT-10 circuit board protects the components from water damage and gives the sensor a longer life span.

Product Description：

Name：MT10 SDI-12 Output Soil Temperature And Moisture Sensor

Type：BND-MT10

Specifications

Volumetric Water Content

Range: 0 (air) to 100 (water)

Temperature

Range: -40 to 80 ℃

Resolution: 0.01 ℃

Accuracy:±0.5 ℃

General

Dimensions: 10 cm (1) x 3.2 cm (w) x 0.7 cm (d)

Prong Length: 5.2 cm

Dielectric Measurement Frequency: 70 MHz

Measurement Time: 150 ms (milliseconds)

Power requirements: 3.6 to 30 VDC, 0.3mA quiescent, 10mA during 150 ms measurement

Output: SDI-12 / RS485 MODBUS RTU

Operating Temperature: -40 to 80 ℃

Connector Types: 3.5 mm (stereo) plug or stripped & tinned lead wires (Pigtail)

Cable Length: 5 m standard; Maximum 75 m. Please contact if you need longer cable lengths.

PHYSICAL CHARACTERISTICS

SENSOR NAME	MT10
DIMENSIONS	10 cm X 3.2 cm
CABLE LENGTH	5 meters

* Custom cable lengths are available for an additional cost.

Type Selections

Code number

Code

Code info.

Code1：model

MT10

Code2：Measurement parameters

Soil moisture, Soil temperature（SDI-12）

Soil moisture, Soil temperature, soil electrical conductivity (EC). Three parameter measurement（RS485 ONLY）

Code3：

Soil moisture range

0-100%

Code4：

Electrical conductivity range（RS485 ONLY）

0-5000us/cm （RS485 ONLY）

0-10000us/cm（RS485 ONLY）

0-20000us/cm（RS485 ONLY）

NONE

Code5：

CONNECTION TYPES

PIGTAIL CABLE

STEREO CABLE （SDI-12 ONLY）

Code6：Output

SDI-12

RS485 MODBUS RTU

Code 7：cable lengths

005

XXX

5 meters

Custom, XXX is an arbitrary length (unit: m)

Model example：

MT10 Sensor, Soil moisture, Soil temperature, soil moisture range is 0-100%, interface SDI-12, connection type is STEREO CABLE, 5 meters cable length.

Type selection code：MT10 - A A D B A 005
